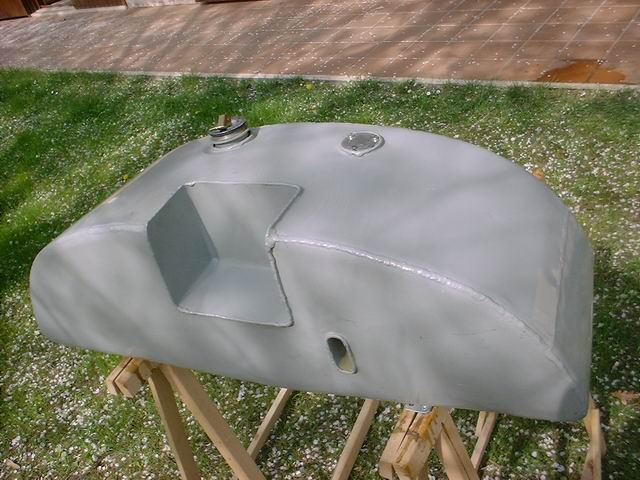

The front fuel tank.It's an original falco tank, so we cleaned and tested it.

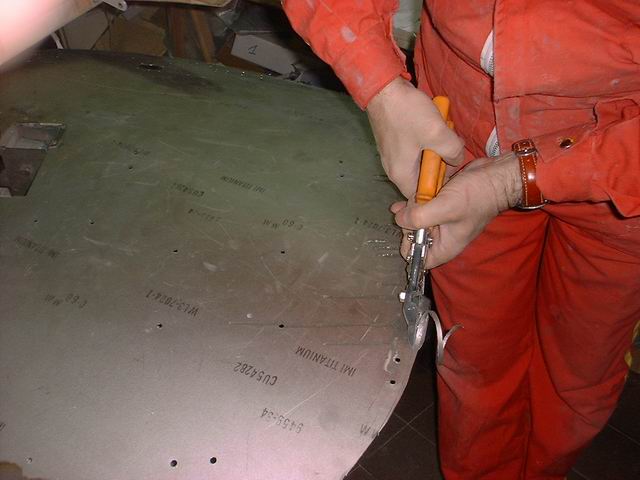

Cutting the titanium of the firewall.You need good scissors to cut it..

The falco has always used square boxes for cable and lines that pass throught the firewall.So we decided to use the boxes we had as well as the airbox and all the items that could be used.The grey AN fitting is used for fuel line, while the blue one is for the smoke system

Another view of the airbox



The firewall is starting to look like a real one.We have the Christen inverted oil system installed (without lines) and gascolator,as well as the electric fuel pump.Also throttle and propeller cables have passed throught the firewall.
